product

Cable Seal PY-7350

Information

Dimension of aluminum alloy:26x26x7.5mm
Cable diameter: 3.5mm
Default cable length: 300mm, other cable lengthis available as per requirements
Tensile strength: >8KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com



Cable sealPY-7350 Technical Data Sheet

Model

PY-7350

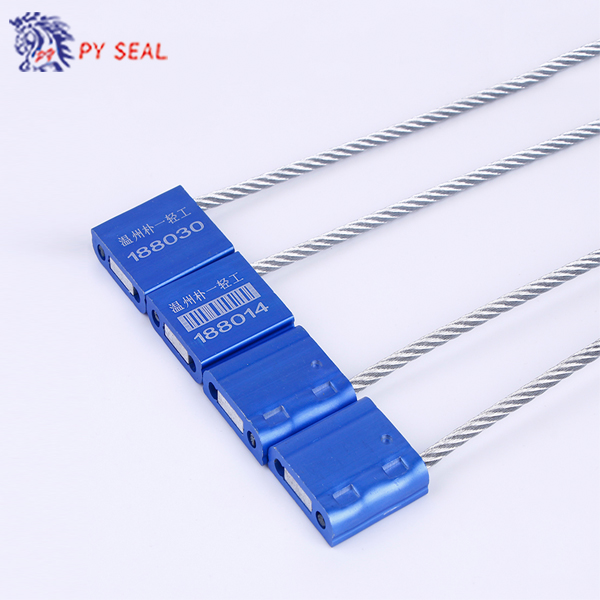

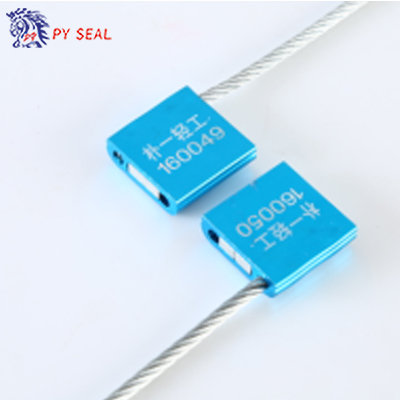

Description

•Inner parts are made by zinc casting
•Aluminum alloy lock head,without any plastic
•Galvanized wire rope, and pull tight locking mechanism, easy to lock
•Company name or LOGO and serial numbers are laser printed

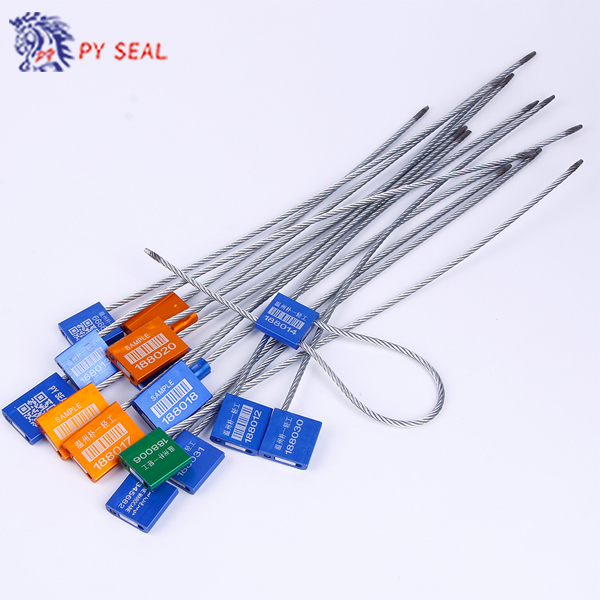

•Various colors are available, such as red, blue, yellow, green. black.

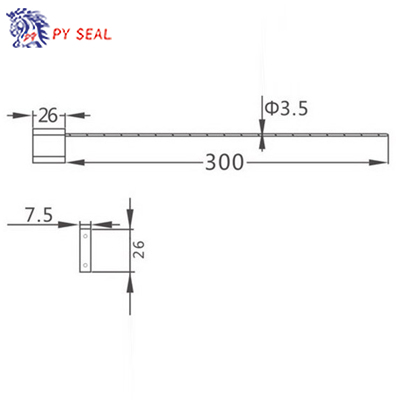

Technical parameters

•Dimension of aluminum alloy:26x26x7.5mm

•Cable diameter: 3.5mm
•Default cable length: 300mm, other cable lengthis available as per requirements
•Tensile strength: >8KN

Application

•Containers ocean shipping, Logistics transportation
•Van trucks, trucks, tank trucks, railway trucks, etc.

Package

•Packing: 500 Pcs / Carton
•Carton Dimension(LxWxH): 36x26x15cm

Weight

•G.W.:15.2 KG
•N.W.: 14 KG
