product

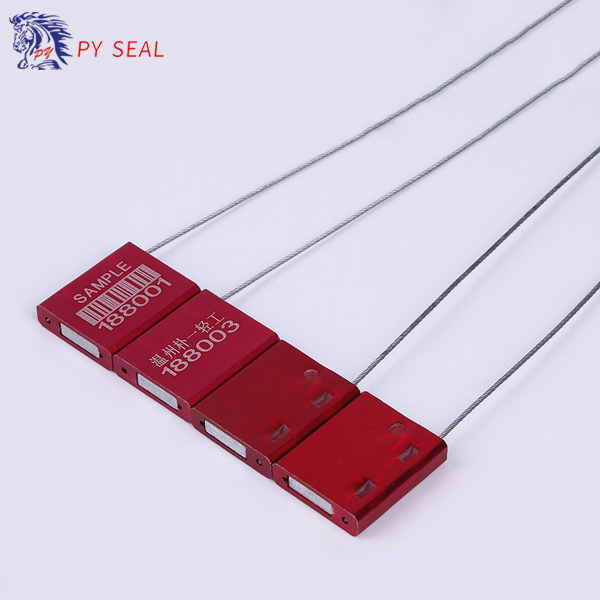

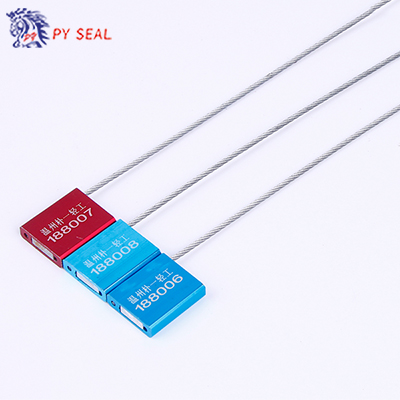

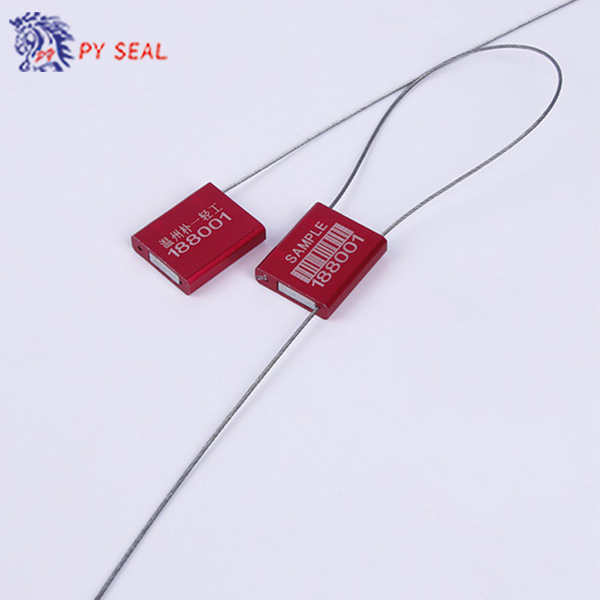

Cable Seal PY 7100

Information

Dimension of aluminum alloy(LxWxH): 21x18x6mm
Cable diameter: 1.0mm
Default cable length: 200mm, any other length cable is available as per requirements
Tensile strength: >2KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com



Cable sealPY-7100 Technical Data Sheet




Model

PY-7100

Description

•Inner parts is made by zinc casting
•Aluminum alloy lock body,without any plastic
•Stainless steel wire, and pull tight locking mechanism, easy to lock
•Company name or LOGO and serial numbers are laser printed
•Bar code is available
•Various colors are available, such as red,blue,yellow,green.black



Technical parameters

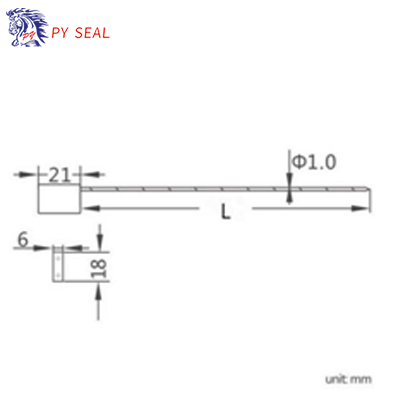

•Dimension of aluminum alloy(LxWxH): 21x18x6mm
•Cable diameter: 1.0mm

•Default cable length: 200mm, any other length cable is available as per requirements
•Tensile strength: >2KN

Application

•Logistics transportation, box packing, meter box anddistribution cabinetetc.

Package

•Packing: 1000 PCS / Carton
•Carton Dimension (LxWxH): 36cm X 26cm X 15cm

Weight

G.W.: 12 kg
N.W.:11 kg
