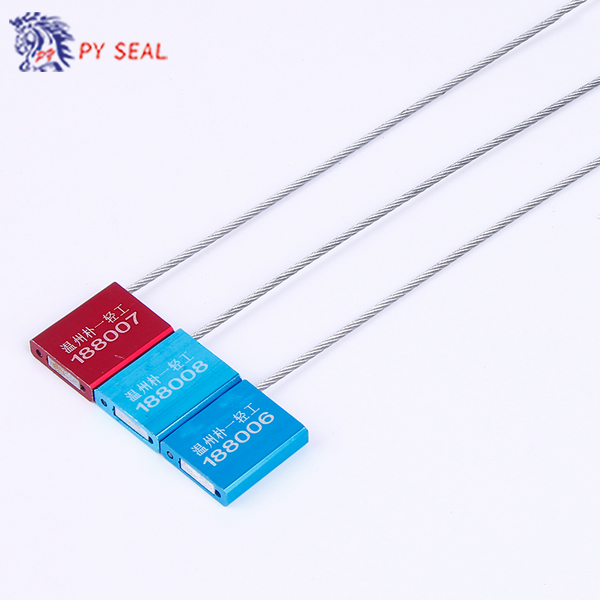

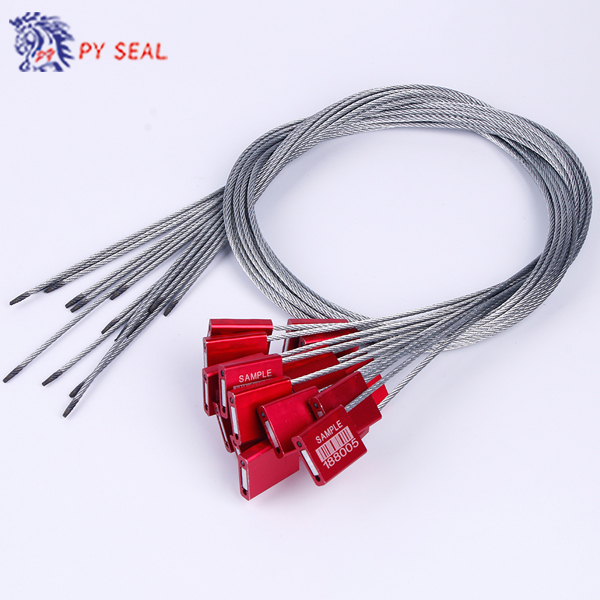

Cable Seal PY-7200

Information

Dimension of aluminum alloy(LxWxH): 26x22x6mm
Cable diameter: 2.0mm
Default cable length: 300mm, any other length cable is available as per requirements
Tensile strength: >5KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com

 Cable sealPY-7200 Technical Data Sheet

Model

PY-7200

Description

•Inner parts is made by zinc casting
•Aluminum alloy lock body,without any plastic
•galvanized wire rope, and pull tight locking mechanism, easy to lock
•Company name or LOGO and serial numbers are laser printed
•Bar code is available
•Various colors are available, such as red, blue, yellow, green. black.

Technical parameters

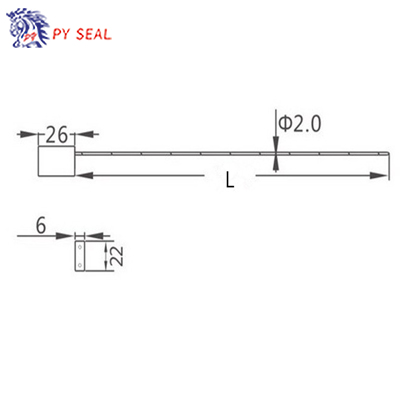

•Dimension of aluminum alloy(LxWxH): 26x22x6mm

•Cable diameter: 2.0mm
•Default cable length: 300mm, any other length cable is available as per requirements
•Tensile strength: >5KN

Application

•Containers ocean shipping, Logistics transportation
•Van trucks, trucks, tank trucks, railway trucks, etc.

Package

•Packing: 1000 PCS / Carton
•Carton Dimension (LxWxH): 36x26x15cm

Weight

•G.W.:16KG
•N.W.: 15.5 KG





Related Products

Cable Seal PY-7250

Cable Seal PY-7250

Dimension of aluminum alloy(LxWxH): 26.5x26x9mm Cable diameter: 2.5mm Default cable length: 300mm, any other length cable is available as per requirements Tensile strength: >5KN

Cable Seal PY-7182

Cable Seal PY-7182

Cable diameter: 1.8mm Default total length: 250mm, any other length cable is available as per requirements Tensile strength: >1.5KN

Cable Seal PY-7184

Cable Seal PY-7184

Dimension of aluminum alloy (LxWxH): 29x20x7.5mm Cable diameter: 1.8mm Default cable length: 300mm, any other length cable is available as per requirements Tensile strength: >3KN

Cable Seal PY-7180

Cable Seal PY-7180

Dimension of aluminum alloy(LxWxH): 25x26.5x8.5mm Cable diameter: 1.8mm Default cable length: 300mm, any other length cable is available as per requirements Tensile strength: >5KN
