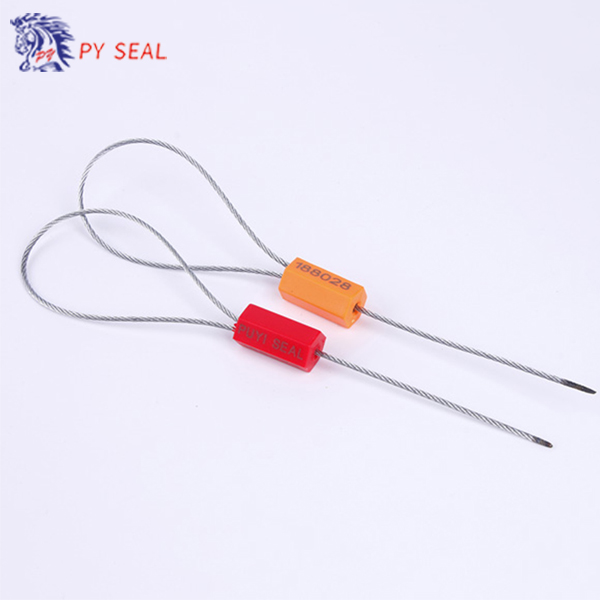

Cable Seal PY-7181

Information

Cable diameter: 1.8mm
Default cable length: 300mm, any other length cable is available as per requirements
Tensile strength: >1.5KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com

Cable sealPY-7181 Technical Data Sheet

Model

PY-7181

Description

• Inner parts is made by zinc casting
• outside with ABS injection
• Pull tight locking mechanism, easy to lock

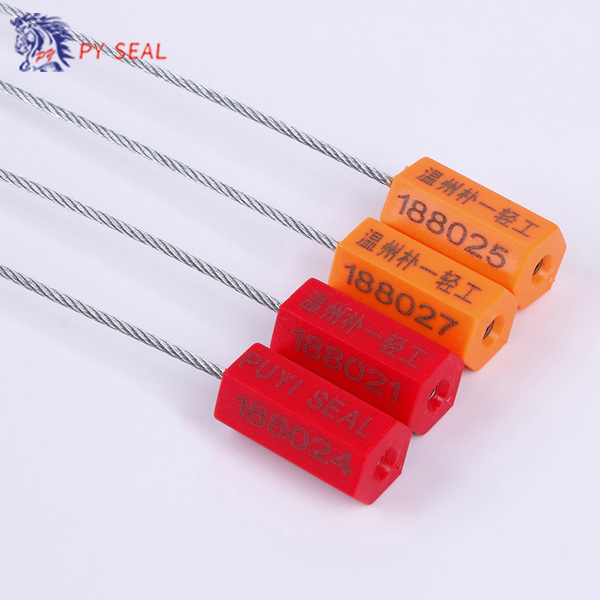

• Company LOGO and serial numbers can be printed on the seal by laser or hot stamping

Technical parameters

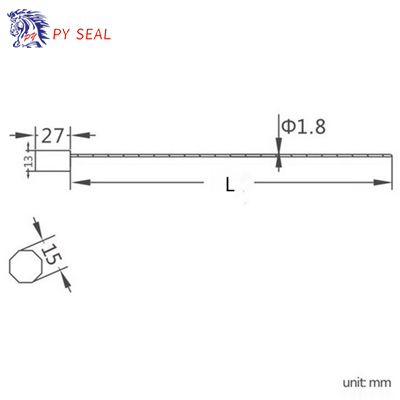

•Cable diameter: 1.8mm
•Default cable length: 300mm, any other length cable is available as per requirements
• Tensile strength: >1.5KN

Application

•Containers ocean shipping
•Logistics transportation
•Van trucks, trucks, tank trucks, railway trucks, etc.

Package

•Packing: 1000 PCS / Carton
•Carton Dimension(LxWxH): 36x26x15cm

Weight

G.W.:17kg
N.W.:16.5 kg
