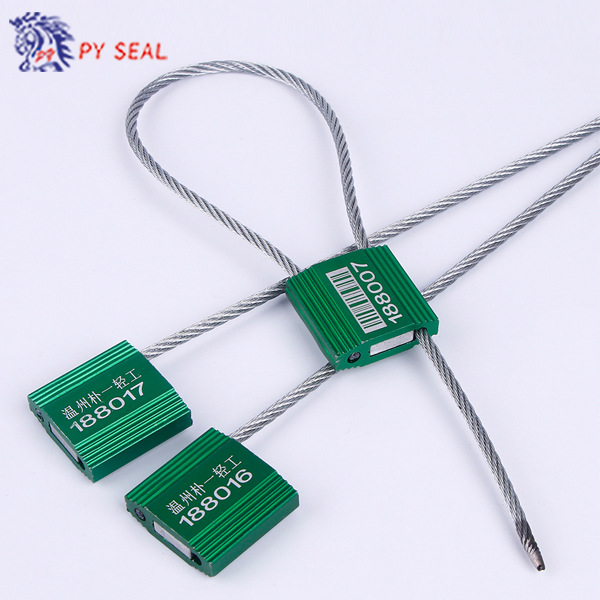

Cable Seal PY-7300

Information

Dimension of aluminum alloy(LxWxH): 32x35x8.7mm
Cable diameter: 3.0mm
Default cable length: 300mm, any other length cable is available as per requirements
Tensile strength: >7KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com



Cable sealPY-7300 Technical Data Sheet



Model

PY-7300

Description

•Inner parts is made by zinc casting
•Aluminum alloy lock body,without any plastic
•galvanized wire rope, and pull tight locking mechanism, easy to lock

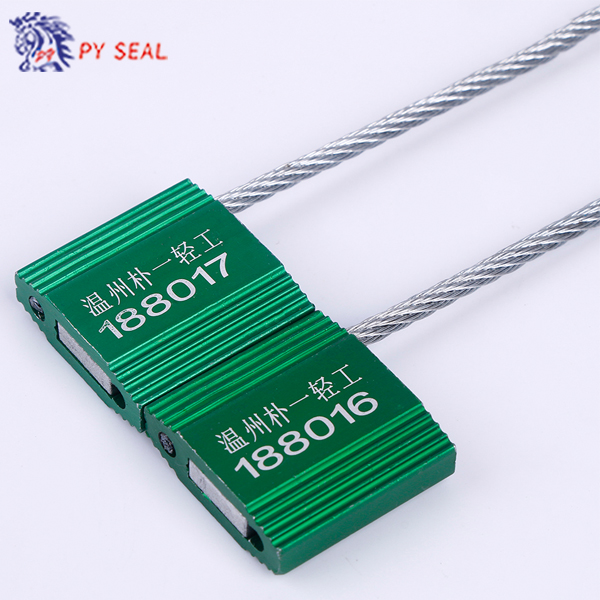

•Company name or LOGO and serial numbers are laser printed
•Bar code is available

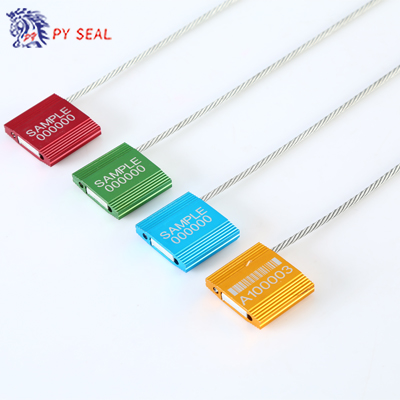

•Various colors are available, such as red, blue, yellow, green. black.

Technical parameters

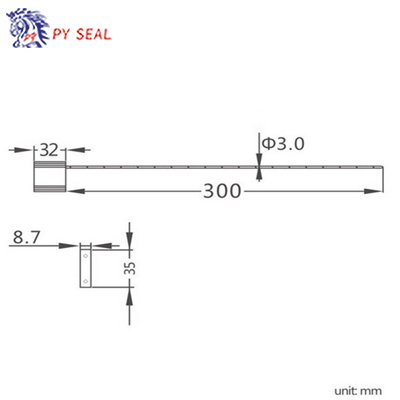

•Dimension of aluminum alloy(LxWxH): 32x35x8.7mm

•Cable diameter: 3.0mm
•Default cable length: 300mm, any other length cable is available as per requirements
•Tensile strength: >7KN

Application

•Containers ocean shipping, Logistics transportation
•Van trucks, trucks, tank trucks, railway trucks, etc.

Package

•Packing: 500 PCS / Carton

•Carton Dimension (LxWxH): 36x26x15cm

Weight

•G.W.:15.5KG
•N.W.: 15 KG
