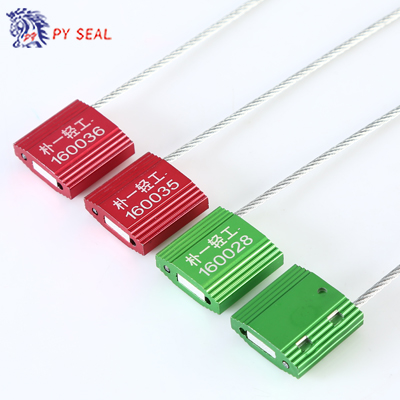

Cable Seal PY-7250

Information

Dimension of aluminum alloy(LxWxH): 26.5x26x9mm
Cable diameter: 2.5mm
Default cable length: 300mm, any other length cable is available as per requirements
Tensile strength: >5KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com



Cable sealPY-7250 Technical Data Sheet



Model

PY-7250

Description

Inner parts is made by zinc casting
Aluminum alloy lock body, without any plastic
galvanized wire rope, and pull tight locking mechanism, easy to lock
Company name or LOGO and serial numbers are laser printed
Bar code is available

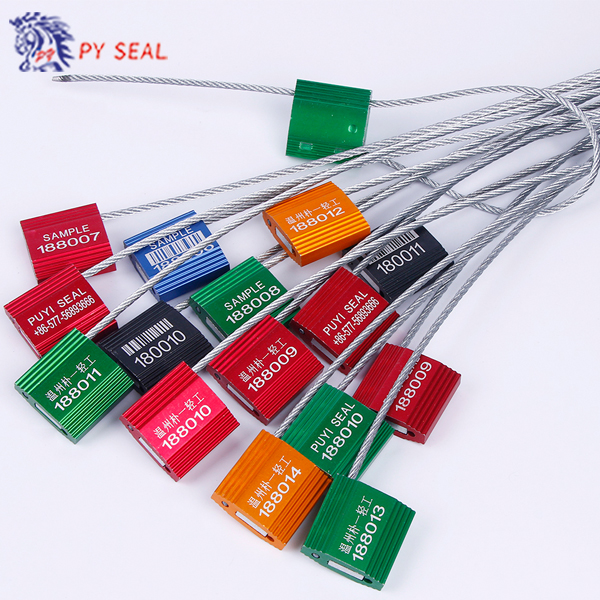

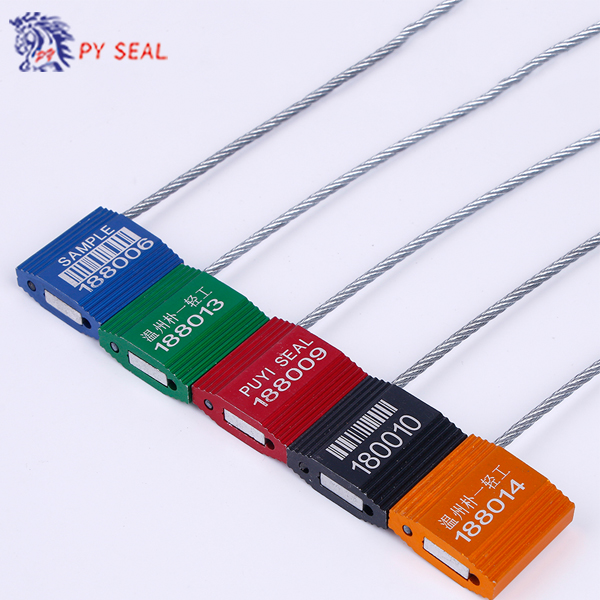

Various colors are available, such as red,blue,yellow,green.black..

Technical parameters

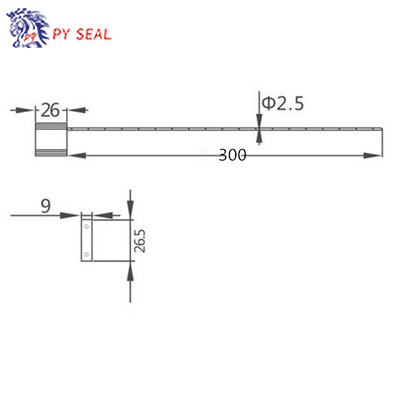

Dimension of aluminum alloy(LxWxH): 26.5x26x9mm

Cable diameter: 2.5mm
Default cable length: 300mm, any other length cable is available as per requirements
Tensile strength: >5KN

Application

Containers ocean shipping, Logistics transportation
Van trucks, trucks, tank trucks, railway trucks, etc.

Package

Packing: 500 PCS / Carton
Carton Dimension(LxWxH): 36x26x15cm

Weight

G.W.: 12.5kg
N.W.: 12kg
