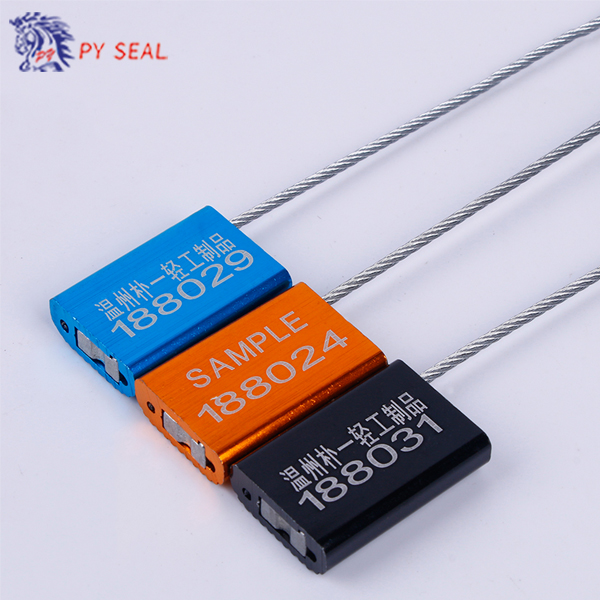

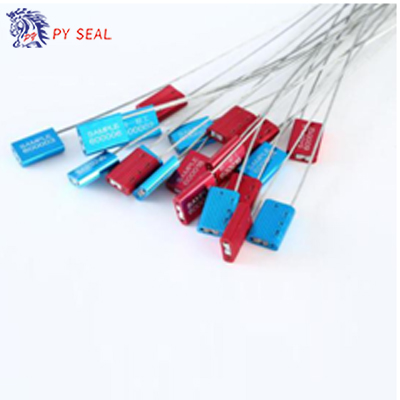

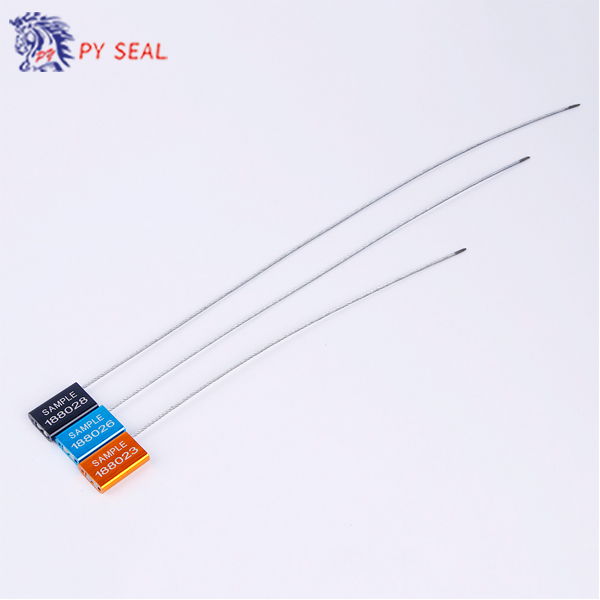

Cable Seal PY-7184

Information

Dimension of aluminum alloy (LxWxH): 29x20x7.5mm
Cable diameter: 1.8mm
Default cable length: 300mm, any other length cable is available as per requirements
Tensile strength: >3KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com



Cable sealPY-7184 Technical Data Sheet

Model

PY-7184

Description

Inner parts is made by zinc casting
•Aluminum alloy lock body,without any plastic
•galvanized wire rope and pull tight locking mechanism, easy to lock
•Company name or LOGO and serial numbers are laser printed
•Bar code is available
•Various colors are available, such as red,blue,yellow, green. black.

Technical parameters

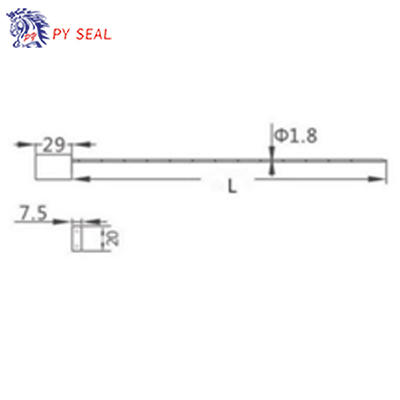

•Dimension of aluminum alloy (LxWxH): 29x20x7.5mm
•Cable diameter: 1.8mm

•Default cable length: 300mm, any other length cable is available as per requirements
•Tensile strength: >3KN

Application

Containers ocean shipping,Logistics transportation
•Van trucks, trucks, tank trucks, railway trucks, etc.

Package

•Packing: 1000 PCS / Carton
•Carton Dimension(LxWxH):36x26x15cm

Weight

G.W.: 13.8kg
N.W.: 13kg
