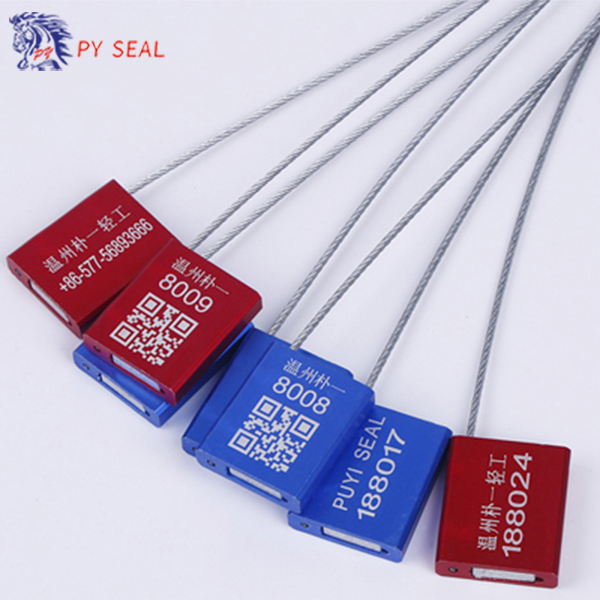

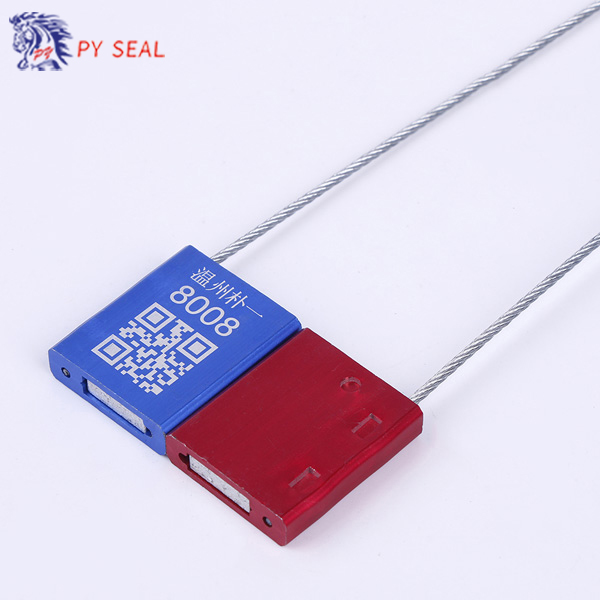

Cable Seal PY-7150

Information

Dimension of aluminum alloy(LxWxH): 26x22x6mm
Cable diameter: 1.5mm
Default cable length: 200mm, any other length cable is available as per requirements
Tensile strength: >2KN

WENZHOU PUYI LIGHT INDUSTRY PRODUCTS CO., LTD.

ADD.:NO.78,XISHANTOU,SHANGQIAOVILLAGE, TENGQIAO TOWN,LUCHENG DISTRICT,WENZHOU CITY,ZHEJIANG PROVINCE, CHINA 325000

TEL:0086-577-56893666                        FAX:0086-577-56877566

Website:www.pyqgzp.comhttp://puyiseal.en.alibaba.com

Mail:pysale01@pyqgzp.compysale05@pyqgzp.com





Cable sealPY-7150 Technical Data Sheet



Model

PY-7150

Description

•Inner parts is made by zinc casting
•Aluminum alloy lock body,without any plastic
•Stainless steel wire, and pull tight locking mechanism, easy to lock
•Company name or LOGO and serial numbers are laser printed
•Bar code is available
•Various colors are available, such as red,blue,yellow,green.black



Technical parameters

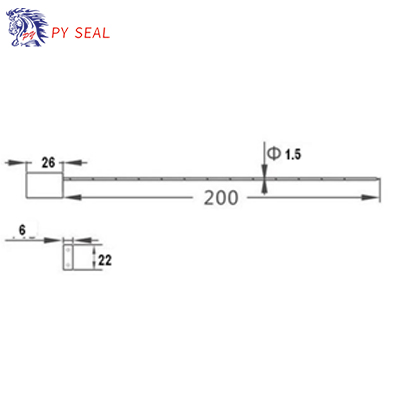

•Dimension of aluminum alloy(LxWxH): 26x22x6mm
•Cable diameter: 1.5mm

•Default cable length: 200mm, any other length cable is available as per requirements
•Tensile strength: >2KN

Application

•Logistics transportation, box packing, meter box anddistribution cabinetetc.

Package

•Packing: 1000 PCS / Carton
•Carton Dimension (LxWxH): 36cm X 26cm X 15cm

Weight

G.W.: 13.5 kg
N.W.:12.5 kg
