product

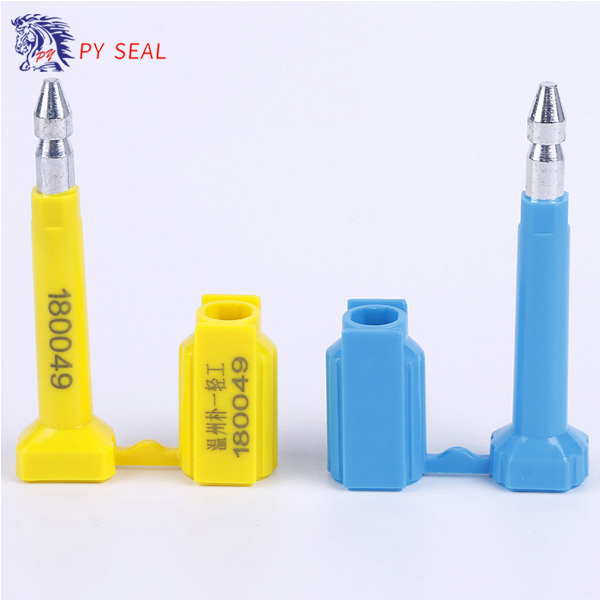

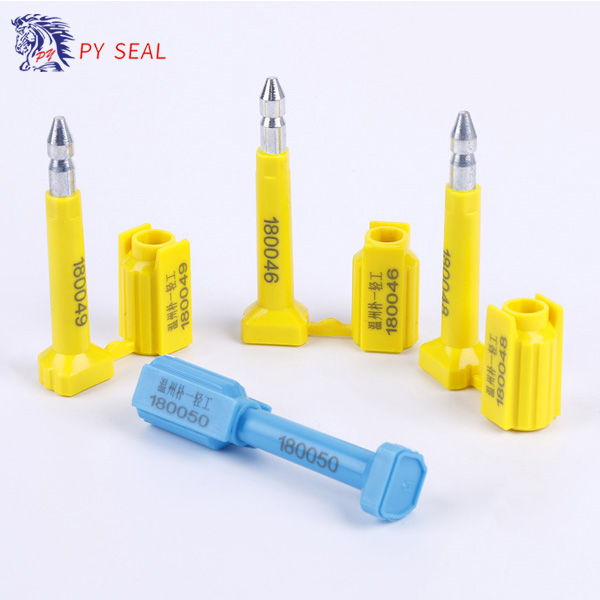

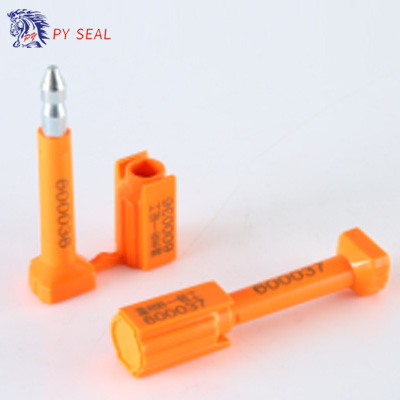

Bolt seal PY-6006

Information

Bolt diameter is 8mm, cylinder diameter is15mm
Coated bolt cap diameter:21mm, coated cylinder diameter : 21mm
ABS coated bolt length:86mm
Coated cylinder length: 35mm
Tensile strength: >15KN

WENZHOU PUYI LIGHT INDUSTRIAL PRODUCTS CO., LTD. is located in Wenzhou City, Zhejiang province.We have two production department--security seals
department and tobacco grinder department.
The security seals department was founded in 2013,Since its foundation, has been committed to the development and production of security seals, it
have different series of security seals, such as high security bolt seals, cable seals, metal seals, barrier seals and other container locks etc.
These seals are widely used in container transportation, logistics, express, security, electricity and other industries. Our products has been
exported to many countries and regions, such as Southeast Asia, South America, Africa and Europe and so on.
The tobacco grinder department was founded in 2017,we have developed many kinds tobacco grinder, although we were founded shortly. at presently,
we have zinc tobacco grinder,aluminium alloy tobacco grinder,
Company of "integrity, quality, innovation and development" business philosophy, warmly welcome you for good business relationship.


Website:www.pyqgzp.com  www.chinasecurityseal.com

Mail: pysale01@pyqgzp.com  pysale05@pyqgzp.com



Bolt seal PY-6006 Technical Data Sheet





Model

PY-6006 bolt seal

Description

•Confirm to ISO/PAS17712 standard requirement

•Outer ABS plastic coated

•Both bolt and cylinder are made of high quality low-carbon steel

•Company name or LOGO and sequential numbers can be laser printed on seals
•Bar code is available
•Various colors are available

Technical parameters

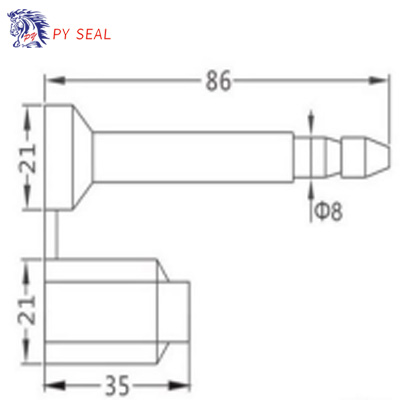

•Bolt diameter is 8mm, cylinder diameter is15mm
•Coated bolt cap diameter:21mm, coated cylinder diameter : 21mm
•ABS coated bolt length:86mm

•Coated cylinder length: 35mm

•Tensile strength: >15KN

Application

•Ocean containers shipping, all kinds of ISO containers
•Van trucks, tank trucks

Package

•Packing: 10pcs/box,250pcs/ctn
•Carton Dimension:48x34x14cm

Weight

G.W.:16kg
N.W.:15 kg





Related Products

Bolt seal PY-6005

Bolt seal PY-6005

Bolt diameter is 8mm, cylinder diameter is 15mm Coated bolt cap diameter is 20mm, coated cylinder diameter is 19mm ABS coated bolt total length is 75.5mm,cylinder length is 35mm Tensile strength: >15KN

Bolt seal PY-6009

Bolt seal PY-6009

Bolt diameter is7mm, cylinder diameter is 15mm ABS coated bolt cap diameter is22.5mm, coated cylinder diameter is 22mm. ABS coated bolt total length is 85mm, cylinder length is 29.5mm Tensile strength: >13KN

Bolt seal PY-6012

Bolt seal PY-6012

bolt diameter is 6mm, cylinder diameter is 13mm ABS coated bolt cap diameter is 18mm, ABS coated cylinderdiameter is17mm ABS coated bolt length is 70.5mm,ABS coated cylinder length is 29.5mm Tensile strength: >8KN

Bolt seal PY-6006

Bolt seal PY-6006

Bolt diameter is 8mm, cylinder diameter is15mm Coated bolt cap diameter:21mm, coated cylinder diameter : 21mm ABS coated bolt length:86mm Coated cylinder length: 35mm Tensile strength: >15KN
